Two insects ‘A’ and ‘B’ are at rest on a plank. B is at middle of the plank and A is at the left end of the plank. There is no friction between plank and horizontal surface. System (two insects + plank) is initially at rest and masses are given in the figure. A and B start moving such that the position of B remains fixed w.r.t. ground and they meet. The point where A meet B is located at

Engineering

Physics

Center of Mass

Relative Motion

Momentum and Energy Conservation for System of Particles

Question

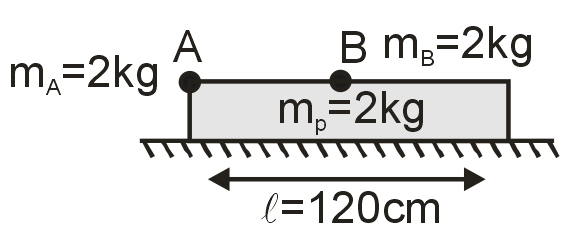

Two insects ‘A’ and ‘B’ are at rest on a plank. B is at middle of the plank and A is at the left end of the plank. There is no friction between plank and horizontal surface. System (two insects + plank) is initially at rest and masses are given in the figure. A and B start moving such that the position of B remains fixed w.r.t. ground and they meet. The point where A meet B is located at

the middle of the plank

the right end of the plank

none of these

30 cm from the left end of the plank

LiveFree JEE Main Previous Year Online Papers Live Free JEE Advance Previous Year Online Papers

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

m_A Δx_A + m_B Δx_B + m_C Δx_C = 0
2 (60) + 2(0) + 2 (–x) = 0 ⟹ x = 60 cm.
