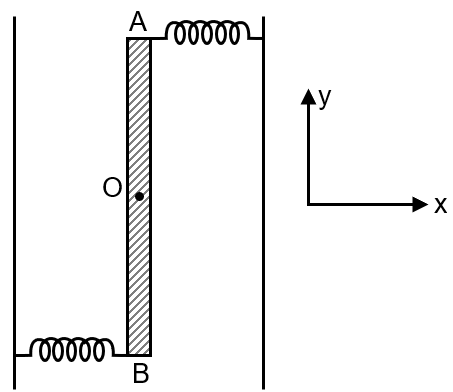

Two light identical springs of spring constant k are attached horizontally at the two ends of a uniform horizontal rod AB of length ℓ and mass m. The rod is pivoted at its centre 'O' and can rotate freely in horizontal plane. The other ends of the two springs are fixed to rigid supports as shown in figure. The rod is gently pushed through a small angle and released. The frequency of resulting oscillation is:

Engineering

Physics

Basics of Simple Harmonic Motion

Question

$\frac{1}{2 π} \sqrt{\frac{k}{m}}$

$\frac{1}{2 π} \sqrt{\frac{2 k}{m}}$

$\frac{1}{2 π} \sqrt{\frac{6 k}{m}}$

$\frac{1}{2 π} \sqrt{\frac{3 k}{m}}$

LiveFree JEE Main Previous Year Online Papers Live Free JEE Advance Previous Year Online Papers

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

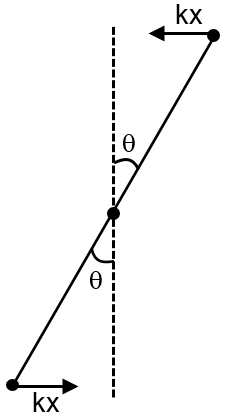

Torque on rod at displacement θ from mean position θ is very small.

$x = \frac{L}{2} θ$

$τ = 2 kx \frac{L}{2} = 2 k \frac{L^{2}}{4} θ = \frac{{kL}^{2}}{2} θ$

Now, τ = Iα

$\frac{{kL}^{2}}{2} θ = \frac{{mL}^{2}}{12} α; α = \frac{6 k}{m} θ$

$τ = \frac{ω}{2 π} = \frac{1}{2 π} \sqrt{\frac{6 k}{m}}$
