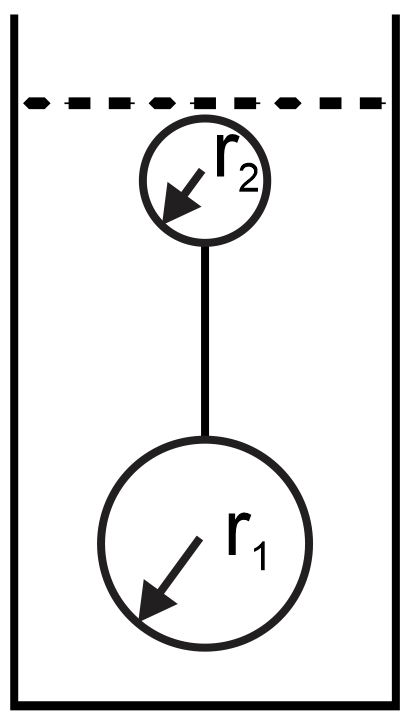

Two solid spherical balls of density σ and radii r₁ and r₂ (< r₁) are tied up with a long ideal string and released in a viscous liquid column of lesser density ρ with the string just taut as shown. The tension in the string, when terminal velocity is attained, is

$\frac{2}{3} π (r_{2}^{3} - r_{1}^{3}) (ρ - g) g$

$\frac{4}{3} π (r_{2}^{3} - r_{1}^{3}) (σ - ρ) g$

$\frac{4}{3} {πr}_{1} r_{2} (r_{1} - r_{2}) (σ - ρ) g$

$\frac{4}{3} π (\frac{r_{2}^{4} - r_{1}^{4}}{r_{2} - r_{1}}) (σ - ρ) g$

LiveFree JEE Main Previous Year Online Papers Live Free JEE Advance Previous Year Online Papers

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

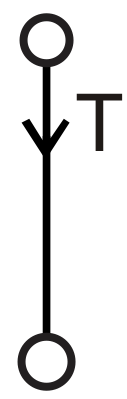

$T + \frac{4}{3} {πr}_{2}^{3} σg - 6 {πηr}_{2} v = 0$

$- \frac{4}{3} {πr}_{2}^{3} ρg$

$\frac{4}{3} {πr}_{1}^{3} σg - \frac{4}{3} {πr}_{1}^{3} ρg - 6 {πηr}_{1} v - T = 0$

$\frac{4}{3} π (σ - ρ) g (r_{1}^{3} + r_{2}^{3}) = 6 πη (r_{1} + r_{2}) v$

$\Rightarrow T = \frac{4}{3} {πr}_{1}^{3} (σ - ρ) g - 6 {πηr}_{1} (\frac{4}{3} π (σ - ρ) g) (r_{1}^{3} + r_{2}^{3}) (r_{1} + r_{2})$

$= \frac{4}{3} π (σ - ρ) [\frac{r_{1}^{4} + r_{1}^{3} r_{2} - (r_{1}^{4} + r_{1} r_{2}^{3})}{(r_{1} + r_{2})}]$
