What is the position and nature of image formed by lens combination shown in figure? (f1, f2 are focal lengths)

Engineering

Physics

Plane Mirror New

Question

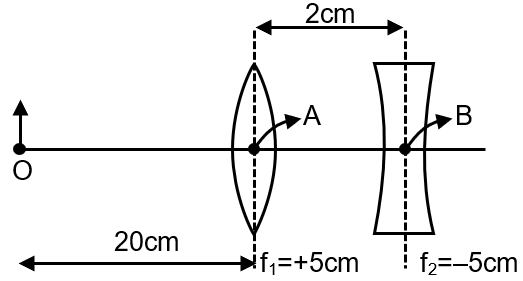

What is the position and nature of image formed by lens combination shown in figure? (f₁, f₂ are focal lengths)

70 cm from point B at right; real

40 cm from point B at right; real

70 cm from point B at left; virtual

$\frac{20}{3} cm$ from point B at right, real

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

image by convex lens:

$\frac{15}{v} - \frac{1}{u} = \frac{1}{f}; \frac{1}{v} + \frac{1}{20} = \frac{1}{5}$

$v = \frac{20}{3} cm$

Image by concave lens:

$u = [\frac{20}{3} - 2] = \frac{14}{3} cm$

$\frac{1}{v} - \frac{1}{u} = \frac{1}{f}; \frac{1}{v} - \frac{3}{14} = - \frac{1}{5}$

v = 70 cm
