When liquid medicine of density is to be put in the eye, it is done with the help of a dropper. As the bulb on the top of the dropper is pressed, a drop forms at the opening of the dropper. We wish to estimate the size of the drop. We first assume that the drop formed at the opening is spherical because that requires a minimum increase in its surface energy. To determine the size, we calculate the net vertical force due to the surface tension T when the radius of the drop is R. When this force becomes smaller than the weight of the drop, the drop gets detached from the dropper.

When liquid medicine of density $ρ$ is to be put in the eye, it is done with the help of a dropper. As the bulb on the top of the dropper is pressed, a drop forms at the opening of the dropper. We wish to estimate the size of the drop. We first assume that the drop formed at the opening is spherical because that requires a minimum increase in its surface energy. To determine the size, we calculate the net vertical force due to the surface tension T when the radius of the drop is R. When this force becomes smaller than the weight of the drop, the drop gets detached from the dropper.

Linked Question 1

If the radius of the opening of the dropper is r, the vertical force due to the surface tension on the drop of radius R (assuming r << R) is

2 $π$ RT

$\frac{2 {πr}^{2} T}{R}$

2 $π$ rT

$\frac{2 {πR}^{2} T}{r}$

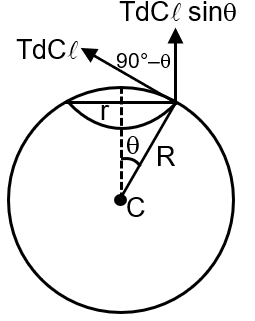

$TdClsinθ$

$F_{y} = TsinθfdCℓ$

$= T \times \frac{r}{R} \times 2 πr$

$F_{y} = \frac{2 {πTr}^{2}}{R}$

Linked Question 2

If r = 5 × 10^–4 m, $ρ$ = 10³ kgm^–3, g = 10 ms^–2 T = 0.11 Nm^–1, the radius of the drop when it detaches from the dropper is approximately

2.0 × 10^-3 m

1.4 × 10^-3 m

3.3 × 10^-3 m

4.1 × 10^-3 m

$R = \frac{2 {πr}^{2} T}{mg} \Rightarrow R = \frac{2 {πr}^{2} T}{ρ \times \frac{4}{3} {πR}^{3} \times 9} \Rightarrow R^{4} = \frac{3 r^{2} T}{2 ρg} \Rightarrow R = {(4)}^{1 / 4} \times 10^{- 3} m$

Linked Question 3

After the drop detaches, its surface energy is

5.4 × 10^-6 J

8.1 × 10^-6 J

2.7 × 10^-6 J

1.4 × 10^-6 J

S.E. = 4 $π$ R²T = 4 × 3.14 × 1.96 × 10^–6 × 0.11 = 2.7 × 10^–6 J
