Question

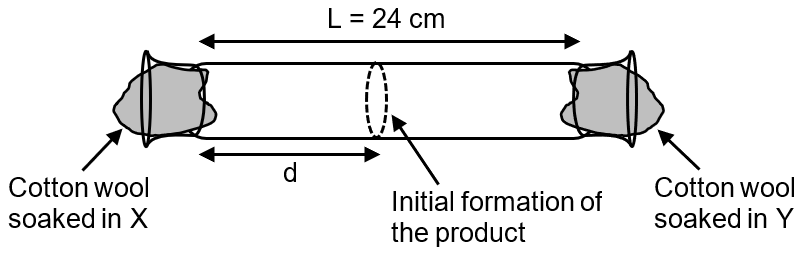

X and Y are two volatile liquids with molar weights of 10 g mol^–1 and 40 g mol^–1 respectively. Two cotton plugs, one soaked in X and the other soaked in Y, are simultaneously placed at the ends of a tube of length L = 24 cm, as shown in the figure. The tube is filled with an inert gas at 1 atmosphere pressure and a temperature of 300 K. Vapours of X and Y react to form a product which is first observed at a distance d cm from the plug soaked in X. Take X and Y to have equal molecular diameters and assume ideal behaviour for the inert gas and the two vapours.

LiveFree JEE Main Previous Year Online Papers Live Free JEE Advance Previous Year Online Papers

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

Linked Question 1

The value of d in cm (shown in the figure), as estimated from Graham's law, is

$\frac{r_{x}}{r_{y}} = \sqrt{\frac{40}{10}} = \sqrt{\frac{M_{y}}{M_{x}}}$

$\frac{x}{24 - x} = 2$

x = 48 – 2x

x = 16

Linked Question 2

The experimental value of d is found to be smaller than the estimate obtained using Graham's law. This is due to

increases collision frequency of X with the inert gas as compared to that of Y with the inert gas.

larger mean free path for Y as compared to that of X.

increased collision frequency of Y with the inert gas as compared to that of X with the inert gas.

larger mean free path for X as compared to that of Y

Mean free math $(λ) = \frac{1}{\sqrt{2} {πσ}^{2} N^{*}}$

Here σ is same but no information is given about N*, so we are considering it same for both, therefore mean free path is same for both gases and collision frequency of gas X will be higher than gas Y & it will travel less distance than expected. Out of all given option D is best answer.
