Surface Tension and Surface Energy
Capillary and Pressure Difference due to Surface Tension
Question

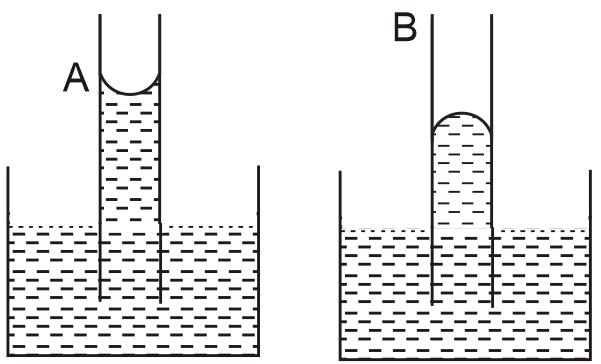

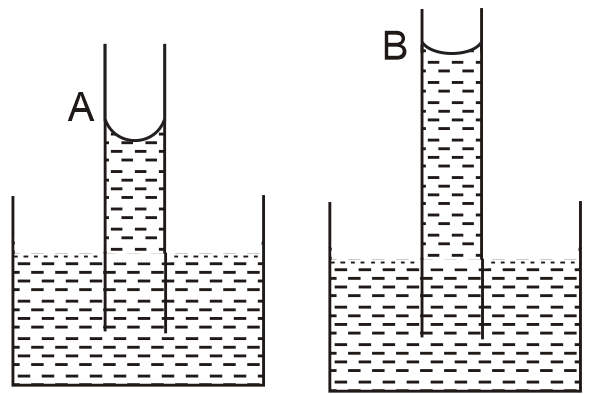

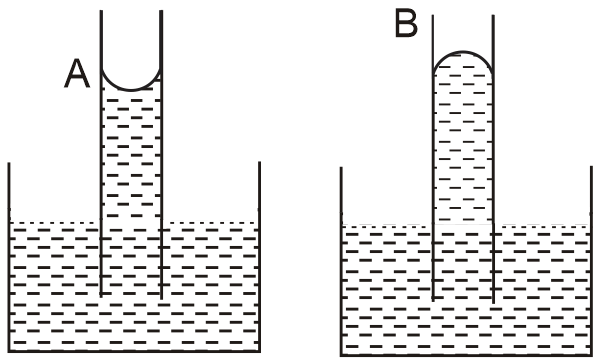

A capillary tube (A) is dipped in water. Another identical tube (B) is dipped in a soap water solution. Which of the following shows the relative nature of the liquid columns in the two tubes?

JEE Advance
College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

Solution
Verified BY
Verified by Zigyan

The weight of the water raised in capillary tube is balanced by the force excerted due to decrease in pressure inside the water column due to the curvature at the water surface.
The decrease in pressure 2ar
from balancing pressure, we get.

2ar=hρg

∴ h ∝ a

since, the surface tension (a) decreases as soap mixed, the height upto with water rises decreases.
