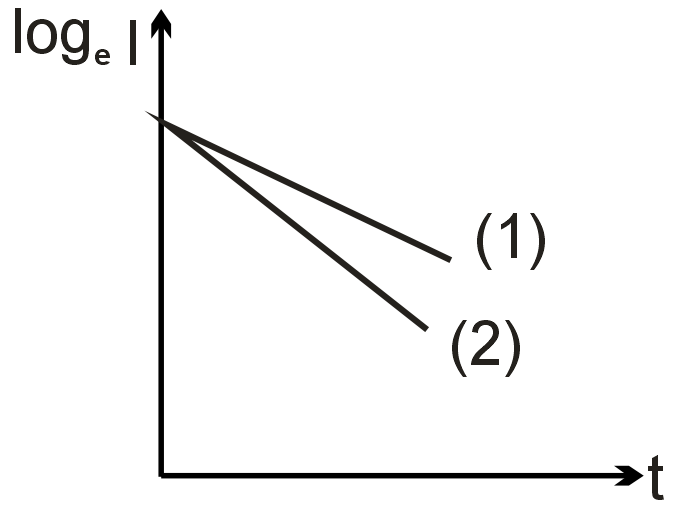

A graph between current & time during charging of a capacitor by a battery in series with a resistor is shown. The graphs are drawn for two circuits. R₁, C₁ and V₁ are the values of resistance, capacitance and EMF of the cell in one circuit and R₂, C₂ and V₂ for another circuit respectively. If only two parameters (out of resistance, capacitance, EMF) are different in the two circuits. What is the correct option?

V₁ < V₂, C₁ < C₂, R₁ = R₂

V₁ > V₂, R₁ > R₂, C₁ = C₂

V₁ < V₂, R₁ < R₂, C₁ = C₂

V₁ = V₂, R₁ > R₂, C₁ > C₂

LiveFree JEE Main Previous Year Online Papers Live Free JEE Advance Previous Year Online Papers

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

$I = \frac{V}{R} e^{- t / (RC)}$
$∴ \log_{e} I = \log_{e} (\frac{V}{R}) - \frac{t}{RC}$
when $t = 0, \log_{e} I = \log_{e} (\frac{V}{R})$ which is same for both circuits. Hence, if one out of V and R is different, then another also has to be different.
∴ C₁ = C₂
Now, $∣ Slope ∣= \frac{1}{RC} is greater for (1)$
∴ R₁ < R₂
and hence V₁< V₂
