Question

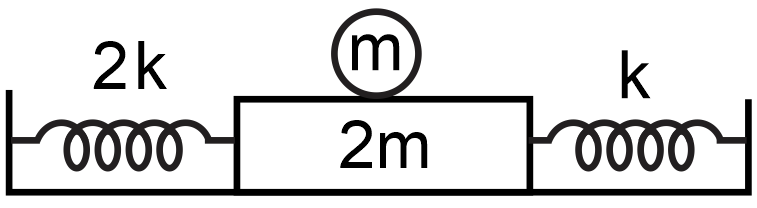

A long plank P is placed on a horizontal frictionless surface and connected to two springs of spring constant k and 2k respectively. A cylinder of mass m is placed on the plank. The plank is displaced towards right (positive direction) and released at t = 0 and it oscillates with amplitude A. The cylinder does not slip on the plank during the oscillation

LiveFree JEE Main Previous Year Online Papers Live Free JEE Advance Previous Year Online Papers

JEE Advance

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

Linked Question 1

The friction force acting on the cylinder as a function of time is shown as

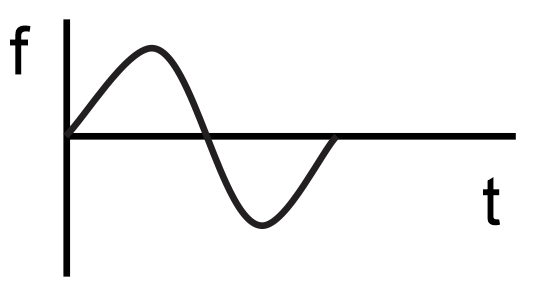

A

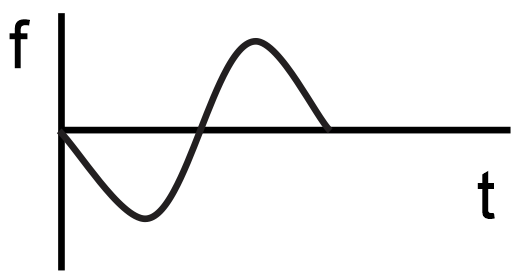

B

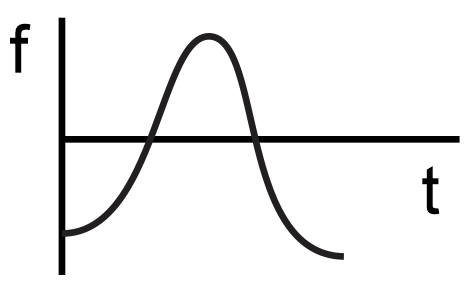

C

D

Friction force acting on the cylinder

$f = - \frac{3}{7} kx = \frac{- 3}{7} kAcos ωt$

Linked Question 2

The maximum friction force acting on the cylinder during the oscillation is

A

$\frac{3 kA}{7}$

B

$\frac{2 kA}{3}$

C

3kA

D

$\frac{2 kA}{7}$

Let at certain instant of time displacement of plank be x towards right from the mean position.
For motion of plank

f – 3kx = 2ma₁

For linear motion of cylinder

– f = ma₂

For rotational

motion of cylinder

$fR = \frac{{mR}^{2}}{2} α$

For no slipping between plank and cylinder

$a_{1} = a_{2} - αR$

$\Rightarrow \frac{f}{2 m} - \frac{3 kx}{2 m} = - \frac{f}{m} - \frac{2 f}{m}$

$\Rightarrow f = \frac{3}{7} kx$

$f_{max} = \frac{3}{7} {kx}_{max} = \frac{3}{7} kA$
