A plastic circular disc of radius R is placed on a thin oil film, spread over a flat horizontal surface. The torque required to spin the disc about its central vertical axis with a constant angular velocity is proportional to

R³

R²

R⁶

R⁴

LiveFree JEE Main Previous Year Online Papers Live Free JEE Advance Previous Year Online Papers

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

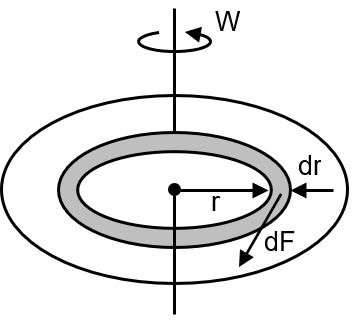

Let coefficient of viscosity & thickness of film → η & x respectively
Viscous force on element ring is

$dF = η (2 πrdr) [\frac{wr - 0}{x}]$

dτ = (dF) r

$∴ τ = \frac{η 2 πw}{t} \int_{0}^{R} r^{3} . dr = (\frac{η (2 π) w}{4 x}) R^{4}$

$∴ τ \propto R^{4}$
