Question

A thin metallic wire having cross sectional area of 10^–4m² is used to make a ring of radius 30 cm. A positive charge of 2πC is uniformly distributed over the ring, while another positive charge of 30 pC is kept at the centre of the ring. The tension in the ring is –––––– N ; provided that the ring does not get deformed (neglect the influence of gravity). $(given, \frac{1}{4 ϵ_{0}} = 9 \times 10^{9} units)$

LiveFree JEE Main Previous Year Online Papers Live Free JEE Advance Previous Year Online Papers

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

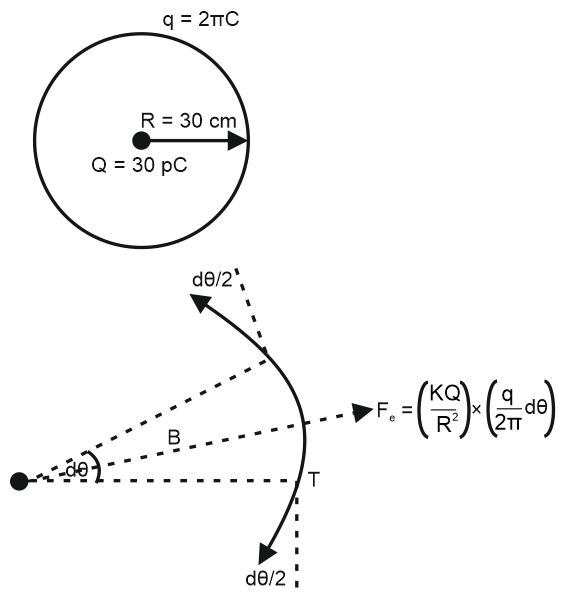

$2 Tsin \frac{dθ}{2} = \frac{kQq}{R^{2}} (\frac{dθ}{2 π})$

$\Rightarrow T = \frac{kQq}{2 {πR}^{2}}$

$\Rightarrow T = \frac{9 \times 10^{9} \times 30 \times 10^{- 12} \times 2 π}{2 π (0.3)^{2}}$

⇒ T = 3 N
