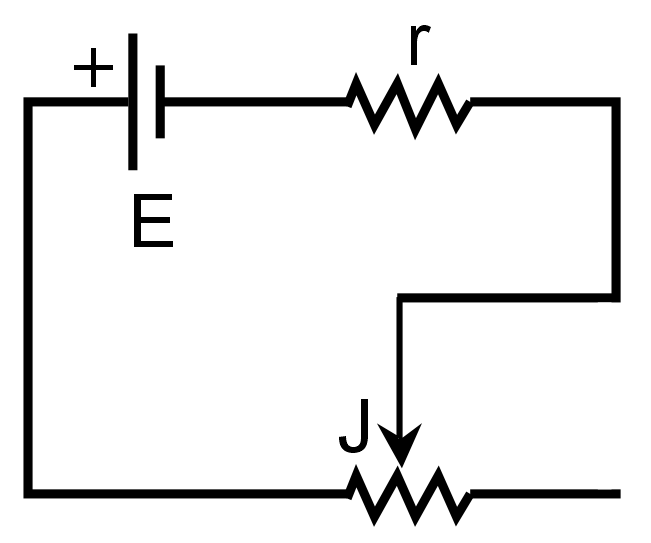

Battery shown in figure, has emf E and internal resistance r. Current in the circuit can be varied by sliding the contact J.

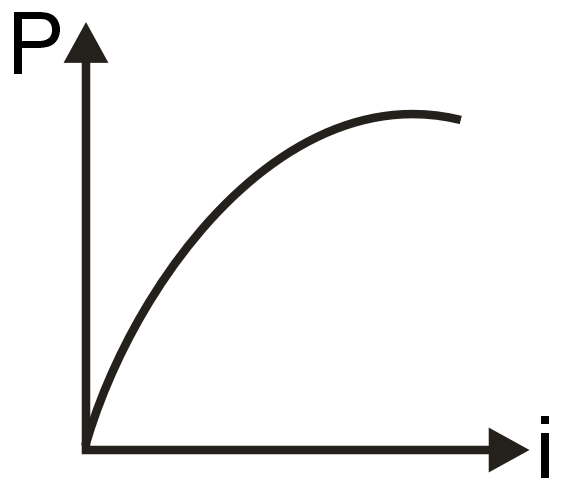

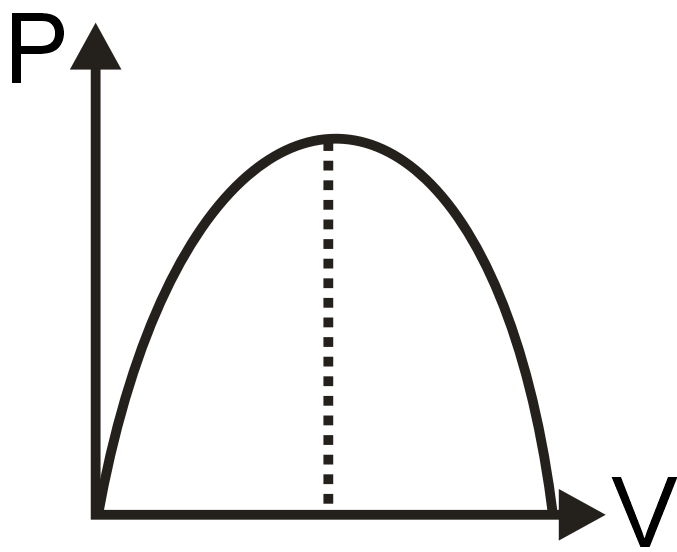

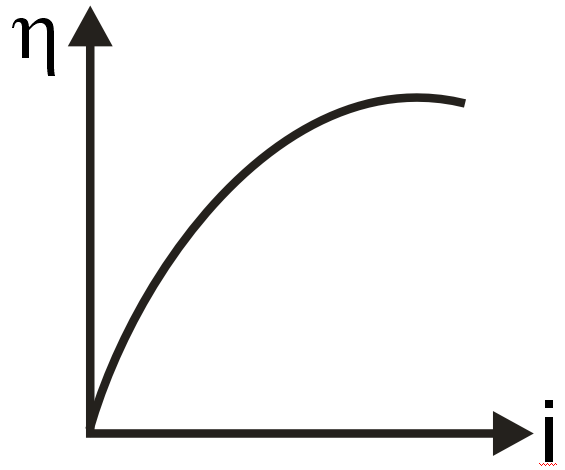

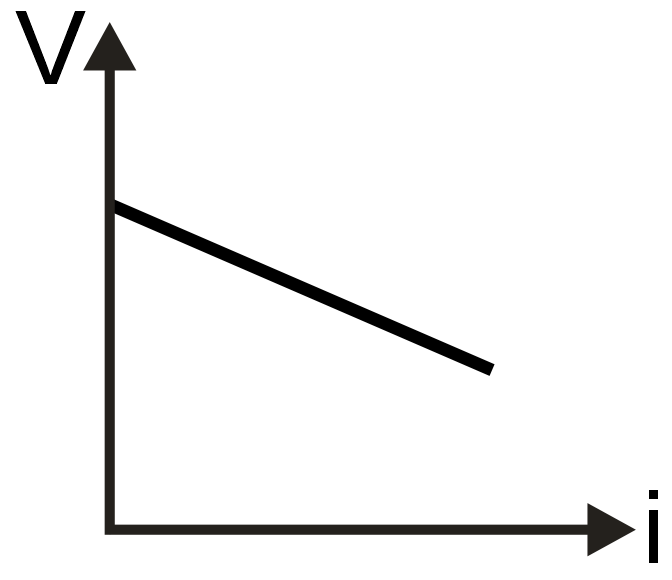

If at an instant current flowing through the circuit is i, potential difference between terminals of the cell is V, thermal power generated in external circuit is P and thermal power generated in the cell is equal to η fraction of total electrical power generated in it, then which of the following graphs are correct ?

LiveFree JEE Main Previous Year Online Papers Live Free JEE Advance Previous Year Online Papers

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

$i = \frac{ε}{r + R}$
V = ∈ – Ir
P = i²R       r + R = $\frac{ε}{i}$
$P = i^{2} [\frac{ε}{i} - r]$
$P = εI - i^{2} r$
$I^{2} r = εI - P$
$P = \frac{V^{2}}{R}$
$P = \frac{P}{i^{2}}$
$P = \frac{V^{2}}{P} \frac{(ε - V)^{2}}{r^{2}}$
$P = \frac{(ε - V) V}{r} = \frac{εV - V^{2}}{r}$
