In column-I certain graph(s) are shown which depict the situation shown in column-II. Column-I Column-II distance of slider from left end = x. Reading of galvanometer = y uniformly charged sphere. distance from centre = x, potential = y (R) Kinetic energy of a projectile = y height from ground = x (S) Velocity of a particle executing SHM = x, Displacement from mean position = y (T) Heat is extracted from a solid at a constant rate. The temperature of the solid = y, time elapsed = x

Engineering

Physics

Basics of Simple Harmonic Motion

Projectile Motion

Electric Flux and Gauss Law and its Applications

Question

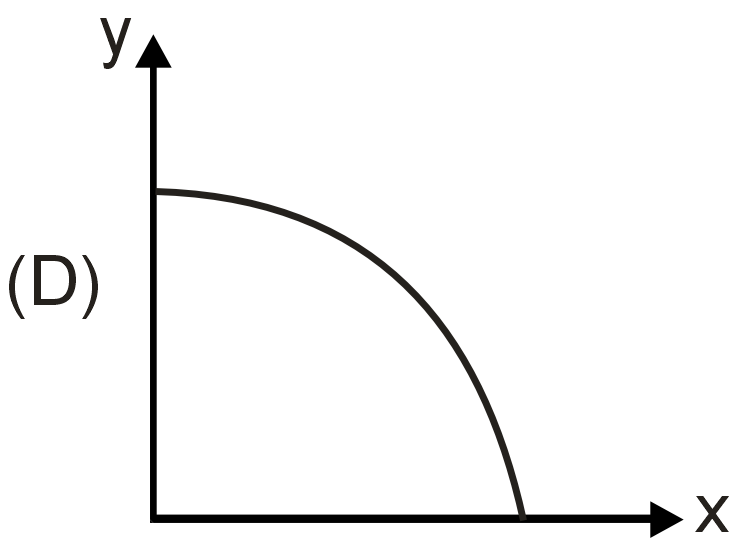

In column-I certain graph(s) are shown which depict the situation shown in column-II.

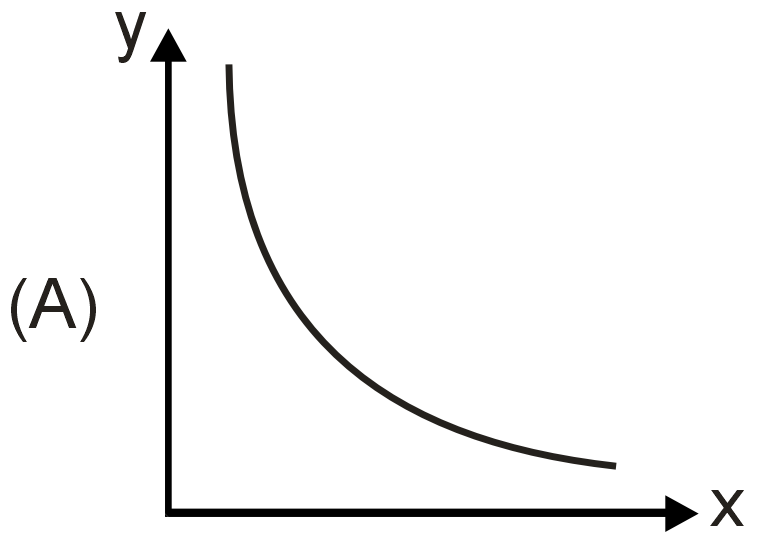

Column-I	Column-II

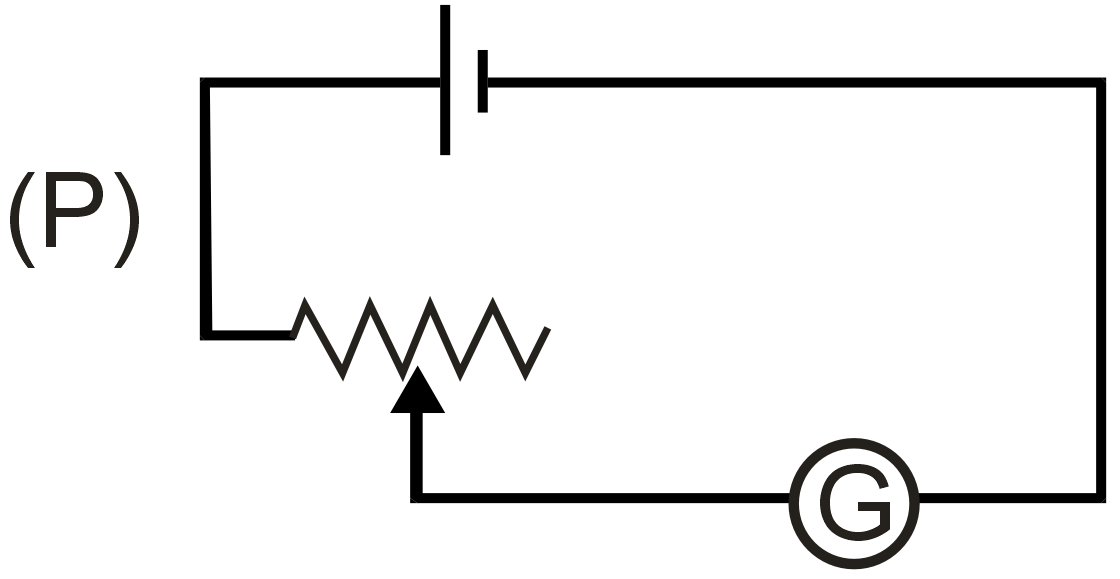

	distance of slider from left end = x. Reading of galvanometer = y

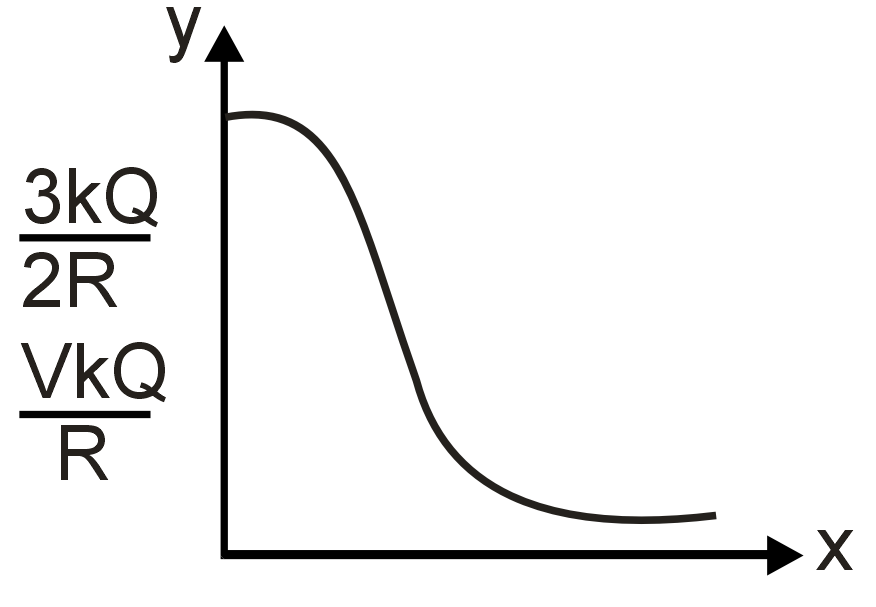

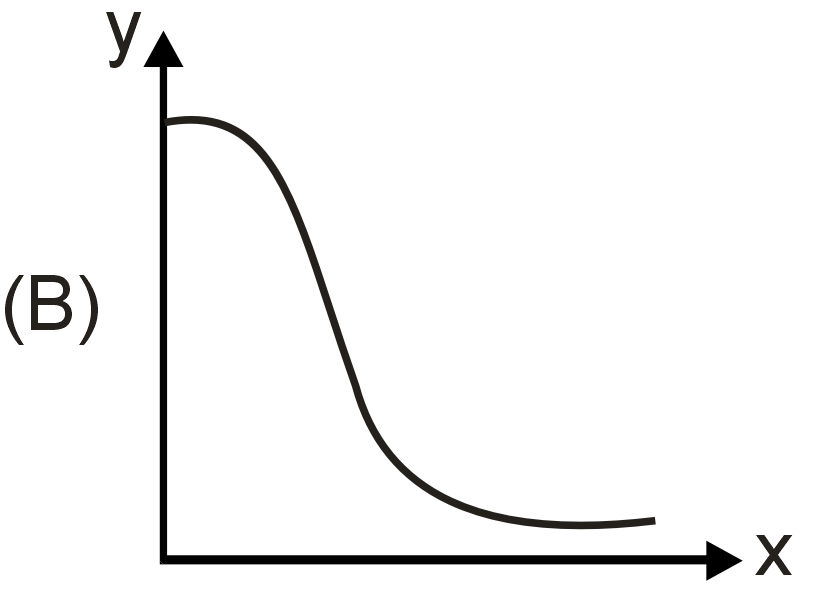

	uniformly charged sphere. distance from centre = x, potential = y

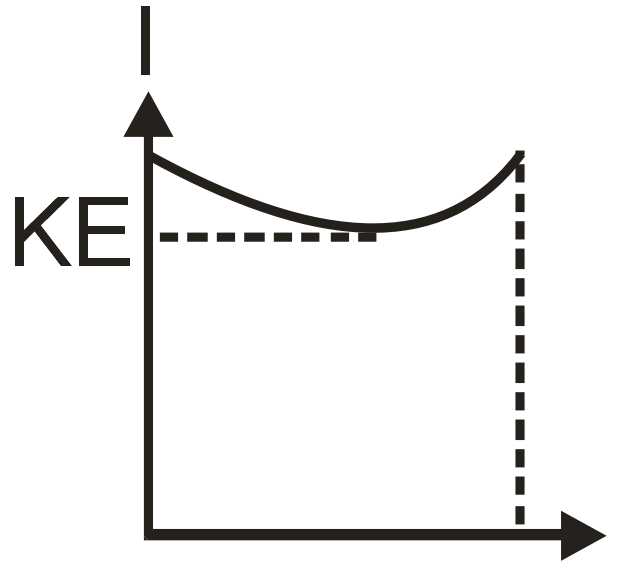

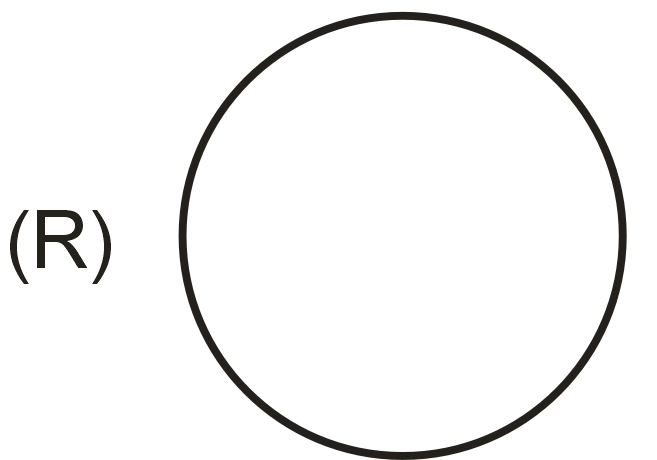

	(R) Kinetic energy of a projectile = y height from ground = x

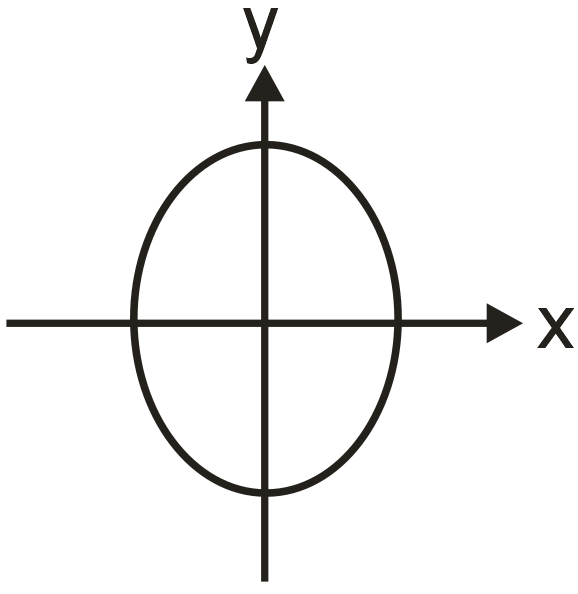

	(S) Velocity of a particle executing SHM = x, Displacement from mean position = y

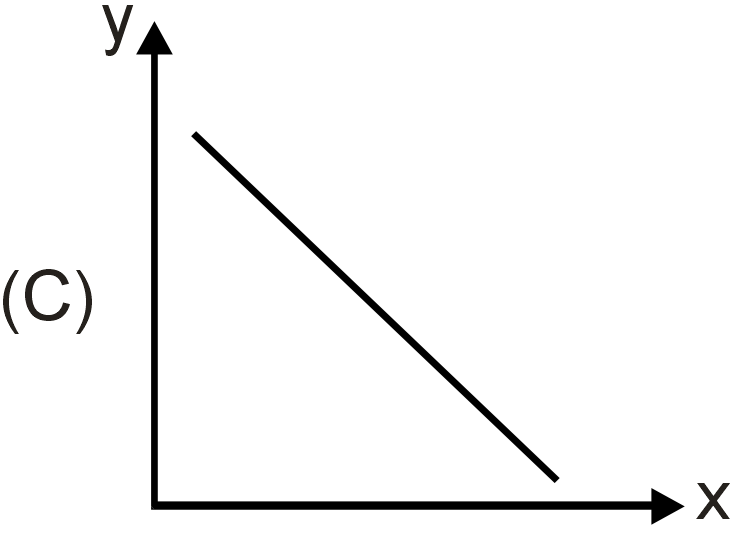

	(T) Heat is extracted from a solid at a constant rate. The temperature of the solid = y, time elapsed = x
