In the arrangement shown in figure, find the potential difference VB

Engineering

Physics

Electric Potential Energy and Electric Potential

Parallel Plate Capacitor

Circuit Analysis Having Capacitor Only

Question

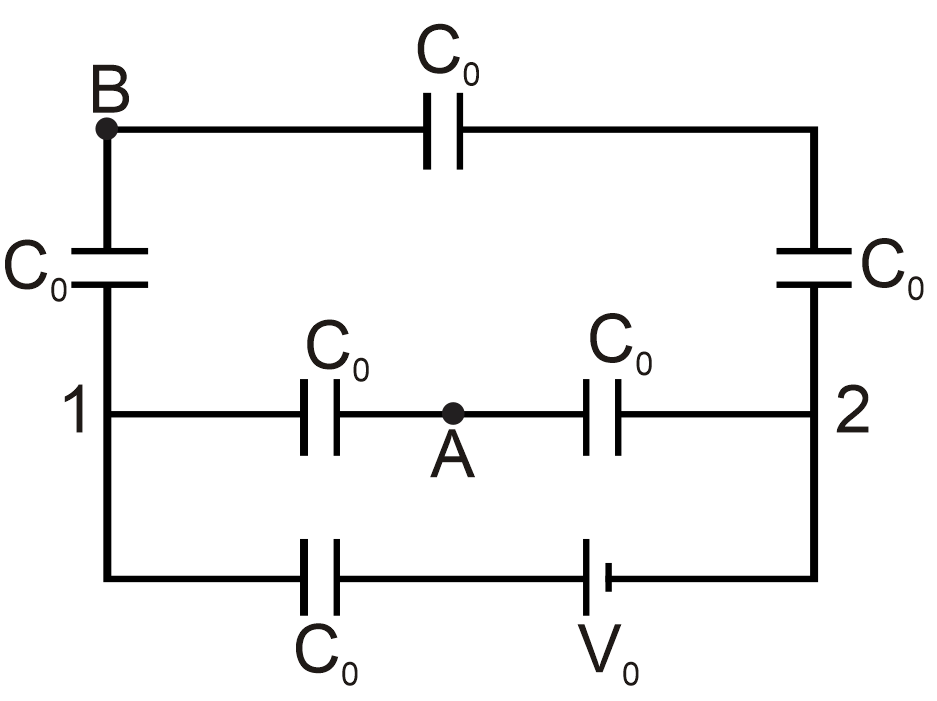

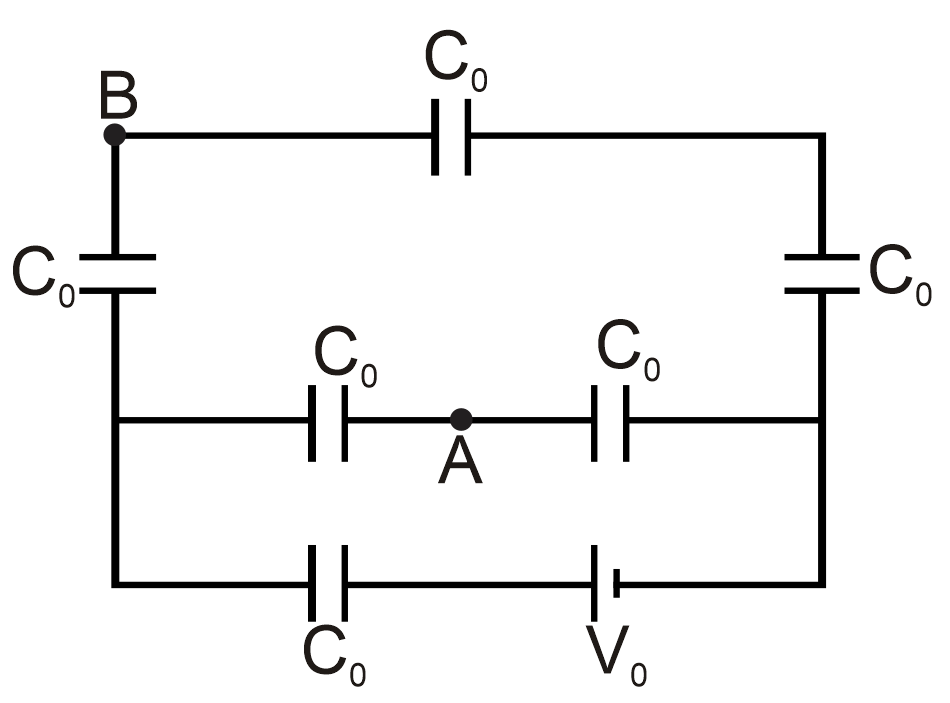

In the arrangement shown in figure, find the potential difference V_B – V_A. (Take V₀ = 55 V)

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

$C_{eq} = \frac{\frac{5 C_{0}}{6} \times C_{0}}{\frac{5 C_{0}}{6} + C_{0}} = \frac{5}{11} C_{0}$

Q = C_eq × 55 = 25 C₀
V₁₂ = 55 – 25 = 30V
V_B – V_A = 15 – 10 = 5V
