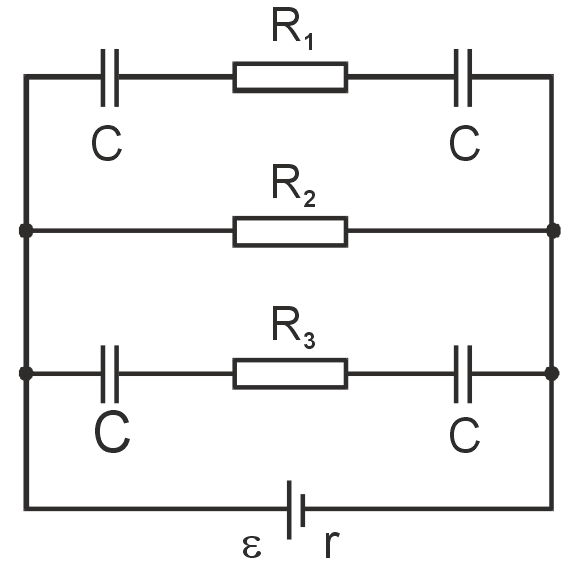

In the circuit (fig.), ε = 5V, r = 1 ohm, R1 = R3 = 4 ohms, R2 = 3 ohms and C = 3μF. Find the charge on the plates of each capacitor.

Engineering

Physics

SI Units

Parallel Plate Capacitor

Basic Circuit Theory and Kirchoffs Law for DC Circuit

Question

In the circuit (fig.), ε = 5V, r = 1 ohm, R₁ = R₃ = 4 ohms, R₂ = 3 ohms and C = 3μF. Find the charge on the plates of each capacitor.

7.28 µC

5.63 µC

11.25 µC

2.45 µC

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

$i = \frac{5}{4} = 1.25$
Pd = 3.75 V
$Q = \frac{C}{2} \times 3.75$
$= \frac{3 \times 10^{- 6}}{2} \times 3.75 μC$
