In the circuit shown, all voltmeters & ammeter are ideal. The internal resistance of battery is 20Ω. The readings of voltmeter and ammeter are marked in the figure. What is resistance R2 (in ohm)?

Engineering

Physics

Optical Instrument

Question

In the circuit shown, all voltmeters & ammeter are ideal. The internal resistance of battery is 20Ω. The readings of voltmeter and ammeter are marked in the figure. What is resistance R₂ (in ohm)?

LiveFree JEE Main Previous Year Online Papers Live Free JEE Advance Previous Year Online Papers

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

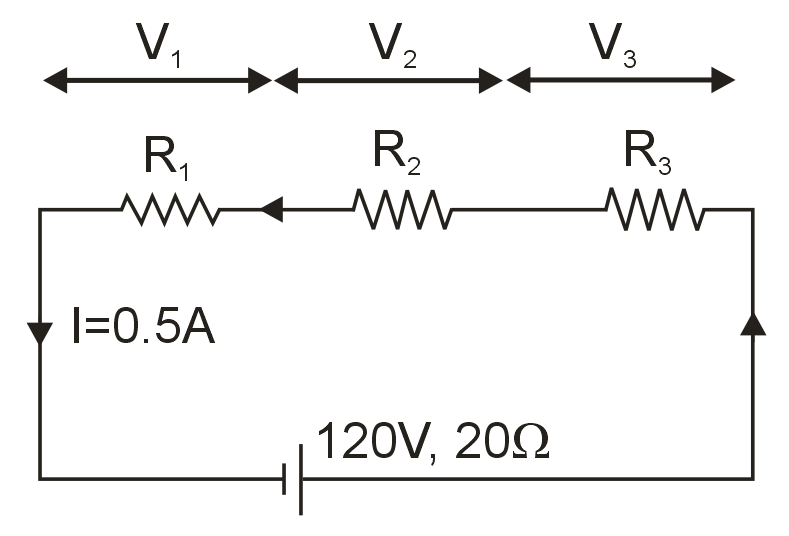

V₁ + V₂ + V₃ = 120 – 20 (0.5)
⟹ V₁ + V₂ + V₃ = 110 V .... (1)

Also V₁ + V₂ = 60 ⟹ V₃ = 110 – 60 = 50V
Now V₂ + V₃ = 90 ⟹ V₂ = 40V

$∴ R_{2} = \frac{40}{0.5} = 80 Ω$
