Question

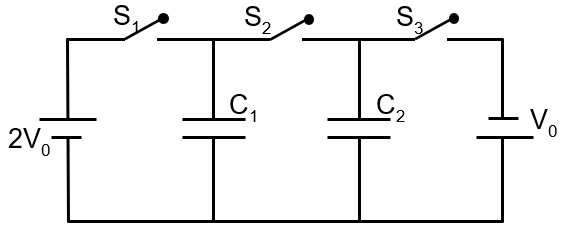

In the circuit shown in the figure, there are two parallel plate capacitors each of capacitance C. The switch S₁ is pressed first to fully charge the capacitor C₁ and then released. The switch S₂ is then pressed to charge the capacitor C₂. After long time, S₂ is released and then S₃ is pressed. After long time,

the charge on the upper plate of C₁ is CV₀

the charge on the upper plate of C₁ is 2CV₀

the charge flown through rightmost battery is 2CV_o

the charge on the upper plate of C₂ is –CV₀
