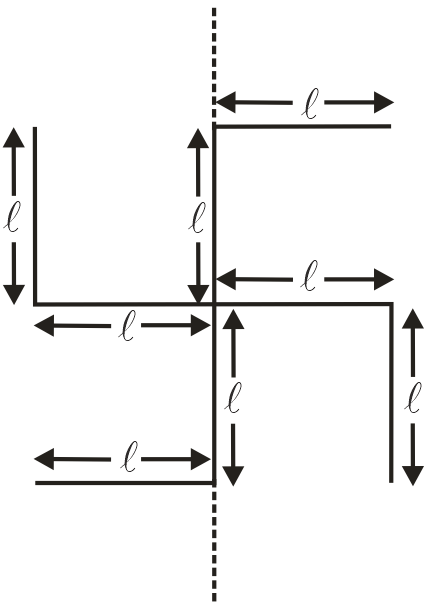

In the shown figure the swastik has a linear mass density of λ and dimension are shown in figure. The moment of inertia about the dashed axis is

$\frac{8}{3} {λℓ}^{3}$

$\frac{10}{3} {λℓ}^{3}$

$\frac{4}{3} {λℓ}^{3}$

4λℓ³

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

I = $\frac{4 {mℓ}^{2}}{3}$ + 2 mℓ² when (m = λℓ)
