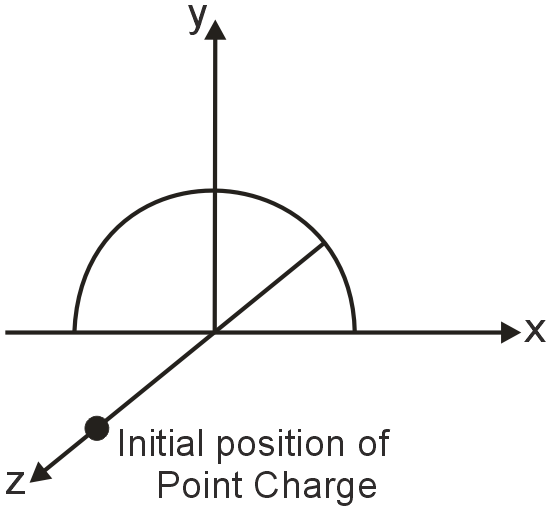

The diagram shows a semicircular ring carrying uniformly distributed charge +2μC on it. The radius of the ring is 4cm. A point charge +2μC is taken slowly from the point (0, 0, 8cm) to (0, 8cm, 0). The magnitude of work done is equal to 4J. After fixing the charge at its new position, the ring is rotated in anticlockwise sense about the X-axis as seen from (16cm, 0, 0) by an angle π/2. What is the magnitude of work done by electric field during the rotation of the ring?

LiveFree JEE Main Previous Year Online Papers Live Free JEE Advance Previous Year Online Papers

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

$W_{A \to B}^{ex .} = W = U_{B} - U_{A}$

$W = U_{B} - \frac{Q^{2}}{4 {πε}_{0} \sqrt{5} R} . . . . . (1)$

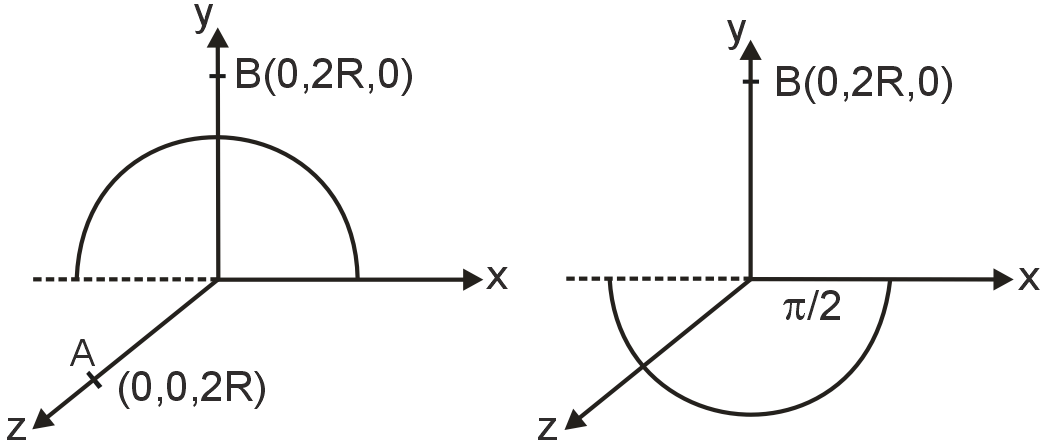

At new position
$U'_{B} = \frac{Q^{2}}{4 {πε}_{0} \sqrt{5} R}$
Work done = U'_B = U_B = –W = – 4J
