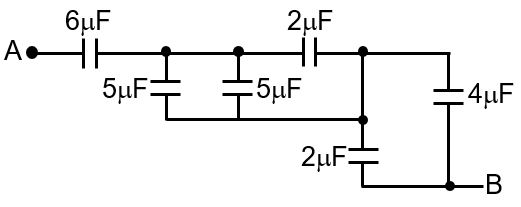

The equivalent capacitance between A and B in the circuit given below, is :

Engineering

Physics

Parallel Plate Capacitor

Question

3.6 µF

2.4 µF

5.4 µF

4.9 µF

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

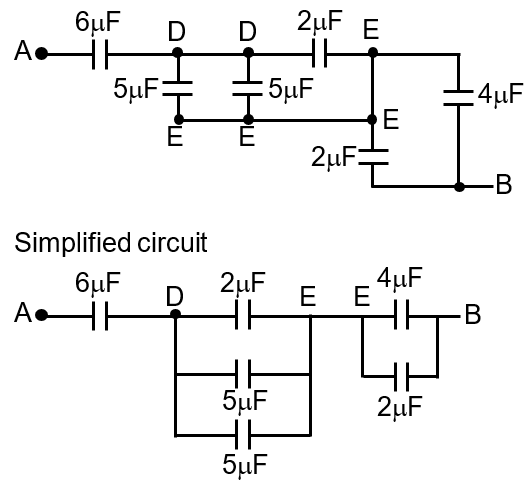

$\frac{1}{c_{eq}} = \frac{1}{6} + \frac{1}{12} + \frac{1}{6} = \frac{5}{12}$ ⇒ $C_{eq} = \frac{12}{5} = 2 .4 µ F$
