The two block system is undergoing vertical SHM as shown with amplitude A and time period T. When the system is at it's upper extreme, m1 is removed without disturbing m2. Statement-1 : m2 will now oscillate with a lesser amplitude than A. Statement-2 : m2 will now oscillate with a lesser time period than T.

Engineering

Physics

Equilibrium

SHM of Spring Block System

Basics of Simple Harmonic Motion

Question

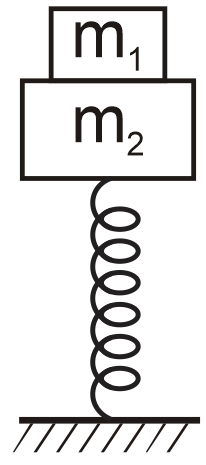

The two block system is undergoing vertical SHM as shown with amplitude A and time period T. When the system is at it's upper extreme, m₁ is removed without disturbing m₂.

Statement-1 : m₂ will now oscillate with a lesser amplitude than A.
Statement-2 : m₂ will now oscillate with a lesser time period than T.

Statement-1 is true, statement-2 is true and statement-2 is correct explanation for statement-1.

Statement-1 is false, statement-2 is true.

Statement-1 is true, statement-2 is false.

Statement-1 is true, statement-2 is true and statement-2 is NOT the correct explanation for statement-1.

LiveFree JEE Main Previous Year Online Papers Live Free JEE Advance Previous Year Online Papers

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

$T = 2 π \sqrt{\frac{m}{k}} \Rightarrow T decreases$
