Question

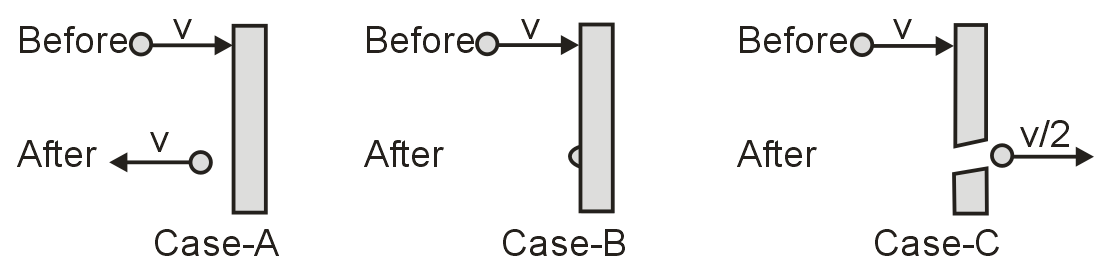

Three different projectiles, each with the same mass, are fired with speed v at a wall. In case A, the projectile bounces straight back with speed v. In case B, the projectile sticks to the wall. In case C, the projectile crashes through the wall and emerges with half its original speed. These three cases are shown here. Place the impulse exerted by the wall on the projectile in each of these three cases in the correct order.

A > B > C

C > B > A

B > A > C

A > C > B

JEE Advance
College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

Solution
Verified BY
Verified by Zigyan

Impulse (J) equals change in momentum: J = mΔv. All projectiles have mass m and initial velocity +v (toward wall).

Case A (bounces back): Δv = vfinal - vinitial = (-v) - (+v) = -2v. So |JA| = |m(-2v)| = 2mv.

Case B (sticks): Δv = 0 - v = -v. So |JB| = mv.

Case C (emerges at v/2): Δv = (+v/2) - (+v) = -v/2. So |JC| = m(v/2) = 0.5mv.

Therefore, the order of impulse magnitude is A > B > C.

Final Answer: A > B > C
