Question

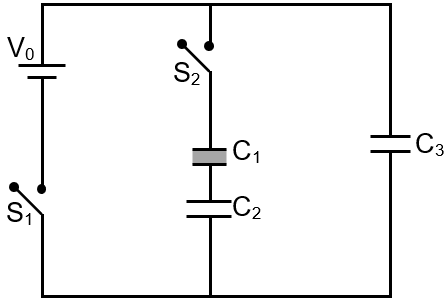

Three identical capacitors C₁, C₂ and C₃ have a capacitance of 1.0 µF each and they are uncharged initially. They are connected in a circuit as shown in the figure and C₁ is then filled completely with a dielectric material of relative permittivity $\in_{r}$ . The cell electromotive force (emf) V₀ = 8 V. First the switch S₁ is closed while the switch S₂ is kept open. When the capacitor C₃ is fully charged, S₁ is opened and S₂ is closed simultaneously. When all the capacitors reach equilibrium, the charge on C₃ is found to be 5 µC. The value of ∈_r = _________.

LiveFree JEE Main Previous Year Online Papers Live Free JEE Advance Previous Year Online Papers

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

When S₁ (closed) and S₂ (open)

Charge on C₃ = 8 µC

and C₁ and C₂ with be uncharged.

New charge on C₃ = 5 µC so charge on C₁ and C₂ = 3 µC

Applying loop rule for the above circuit

$\frac{5}{1} = \frac{3}{\in_{r}} + \frac{3}{1} \Rightarrow \in_{r} = 1.50$
