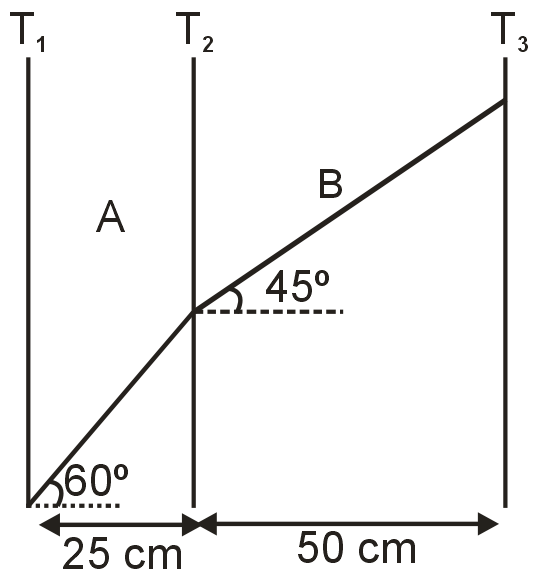

Two conductors A and B each of cross section area 5 cm2 are connected in series. Variation of temperature (in ºC) along the length (in cm) is as shown in the figure. If thermal conductivity of A is 200 J/m-sec-ºC. The thermal conductivity of B is K × 50\sqrt{3} J/m-sec-ºC. Find the value of K.

Engineering

Physics

Conduction of Heat

Thermal Expansion

Question

Two conductors A and B each of cross section area 5 cm² are connected in series. Variation of temperature (in ºC) along the length (in cm) is as shown in the figure. If thermal conductivity of A is 200 J/m-sec-ºC. The thermal conductivity of B is K × 50 $\sqrt{3}$ J/m-sec-ºC. Find the value of K.

LiveFree JEE Main Previous Year Online Papers Live Free JEE Advance Previous Year Online Papers

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

$\frac{ΔQ}{Δt} = K_{A} A \frac{dT}{dx}$
$\frac{dT}{dx}$ in conductor A = slpoe of graph = $\sqrt{3}$
Since both conductors are connected in series, same heat current will flow in A and B.
$K_{B} = \frac{ΔQ}{Δt} \times \frac{1}{A \frac{dT}{dn}} = \frac{Δθ}{Δt} \times \frac{1}{Atan 45^{\circ}} = 200 \sqrt{3} J / m - \sec^{\circ} C$
