Question

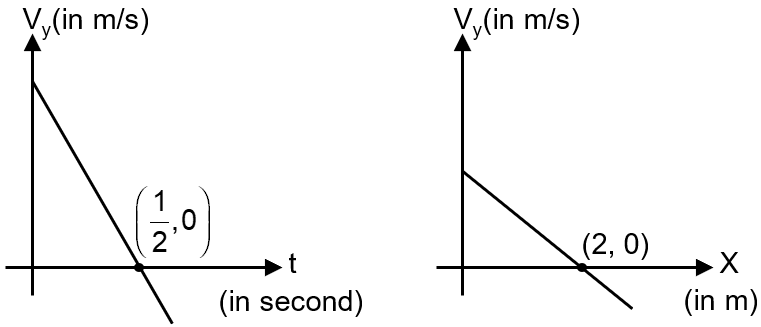

Two graph of the same projectile motion (in the xy-plane) projected from origin are shown. x-axis is along horizontal direction and y-axis is vertically upwards. Take g = 10 m/s2.


JEE Advance
College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

Linked Question 1

The projection speed is :

40  m/sec

41  m/sec

37  m/sec

14  m/sec

Solution
Verified BY
Verified by Zigyan

Time of flight (T) = 1s
2uyg=1  s                ⇒    uy = 5 m/s
Range (R) = 4m
     2(ux)(uy)g=4    ⇒    ux = 4 m/s
u=ux2+uy2=41  m/s
θ=tan1(uyux)=tan1(54)
H=uy22g=(5)220=54=1.25  m

Linked Question 2

Maximum height attained from point of projection is :

12.5 m

1.25 m

2.25 m

None of these

Solution
Verified BY
Verified by Zigyan

Time of flight (T) = 1s
2uyg=1  s                ⇒    uy = 5 m/s
Range (R) = 4m
     2(ux)(uy)g=4    ⇒    ux = 4 m/s
u=ux2+uy2=41  m/s
θ=tan1(uyux)=tan1(54)
H=uy22g=(5)220=54=1.25  m

Linked Question 3

Projection angle with the horizontal is :

tan1(23)

tan1(54)

tan1(45)

tan1(12)

Solution
Verified BY
Verified by Zigyan

Time of flight (T) = 1s
2uyg=1  s                ⇒    uy = 5 m/s
Range (R) = 4m
     2(ux)(uy)g=4    ⇒    ux = 4 m/s
u=ux2+uy2=41  m/s
θ=tan1(uyux)=tan1(54)
H=uy22g=(5)220=54=1.25  m
