Question

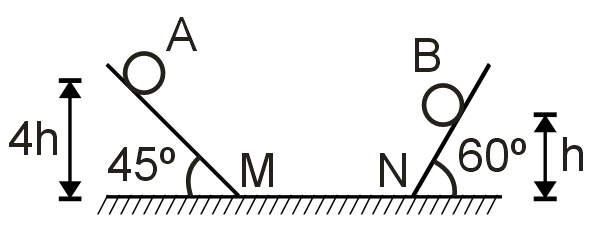

Two identical balls A and B are released from the positions shown in figure. They collide elastically on horizontal portion MN. All surfaces are smooth. The ratio of heights attained by A and B after collision will be(Neglect energy loss at M & N)

4 : 13

2 : 1

1 : 4

2 : 5

JEE Advance
College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

Solution
Verified BY
Verified by Zigyan

In an elastic collision between two identical balls, velocities are exchanged. Ball A starts at height 4h, so its speed before collision is 2g×4h=8gh. Ball B starts at height h, so its speed is 2gh. After collision, A's speed becomes 2gh and B's becomes 8gh. The maximum height reached is proportional to the square of the speed. Therefore, the ratio of heights is (2gh)2(8gh)2=2gh8gh=14.

Final Answer: 1 : 4
