Question

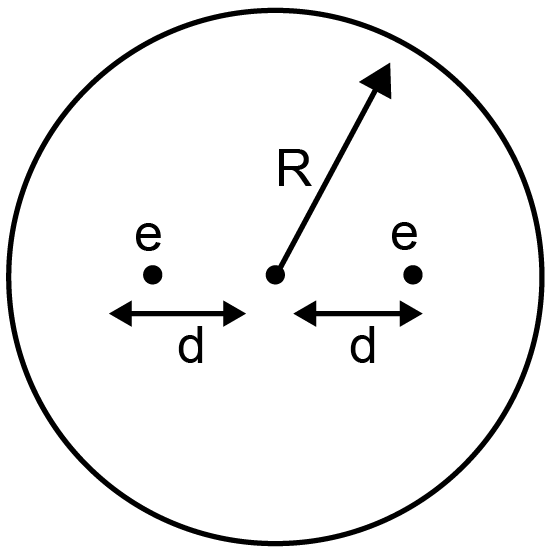

Using thomson’s model of the atom, consider an atom consisting of two electrons, each of charge –e, embeded in a sphere of charge + 2e and radius R. In equilibrium each electron is at distance d from the centre of the atom. If equilibrium separation between electrons is R/n then write n.

LiveFree JEE Main Previous Year Online Papers Live Free JEE Advance Previous Year Online Papers

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

Field due to +2e charge sphere at distance d from the centre E = $\frac{2 ked}{R^{3}}$
Force on electron F = eE = $\frac{2 {ke}^{2} d}{R^{3}}$
F_c = $\frac{{ke}^{2}}{4 d^{2}}$
$\frac{2 {ke}^{2} d}{R^{3}} = \frac{{ke}^{2}}{4 d^{2}} \Rightarrow$ R³ = 8d³ ⇒ R = 2d
